High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts

Name: High Hardness Polished Zirconia Ceramic Pin Rod Bar for Industrial Machine Parts
Brand: Custom
Price: 1 USD

China High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts wholesale

Brand Name : Custom

Model Number : Custom

Certification : ISO, ROHS

Place of Origin : Guangdong, China(mainland)

MOQ : 5 PCS

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5000 pcs per month

Delivery Time : 10-30 working days after receiving deposit

Packaging Details : Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

Product name : Zirconia Ceramic Pin / Rod / Bar

Material : Zirconia / alumina ceramic

Insulation breakdown strength : 15-18KV/mm, or customized

Highest application temperature : 2000 C, or customized

Bending strength : 300 MPA, or customized

Compressive Strength : 3400 MPA, or customized

Density : 3.9g/cm3 / >6.0g/cm3, or customized

Color : White, yellow, or customized

Size : Customized

Application : Industrial ceramic pin parts

Contact Now

High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts

Product Description

Advantages:

1. Refractory.
2. Isostatic Pressed.
3. Long Service Life.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.

Properties Sheet:

Properties	Units	95 Alumina	99 Alumina	Zirconia
Density	ɡ / cm³	3.65	3.92	5.95 - 6.0
Water Absorption	％	0	0	0
Coefficient of Thermal Expansion	10^-6 / K	7.9	8.5	10.5
Modulus of Elasticity Young’s Mod	Gpa	280	340	210
Poisson’s Ratio	/	0.21	0.22	0.3
HV Hardness	Mpa	1400	1650	1300 - 1365
Flexural Strength @ Room Temperature	Mpa	280	310	950
Flexural Strength @ 700℃	Mpa	220	230	210
Compressive Strength@Room Temperature	Mpa	2000	2200	2000
Fracture Toughness	Mpa * m^½	3.8	4.2	10
Heat Conductivity @ Room Temperature	W / m * k	18 - 25	26 - 30	2.0 - 2.2
Electrical Resistivity @ Room Temperature	Ω*mm² / m	＞10¹⁵	＞10¹⁶	＞10¹⁵
Max Application Temperature	℃	1500	1750	1050
Resistance to Acid Alkaline	/	High	High	High
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV / mm	16	22	/
Thermal Shock Resistance	Δ T ( ℃ )	220	180 - 200	282 - 350
Tensile Strength @ 25℃	Mpa	200	248	252

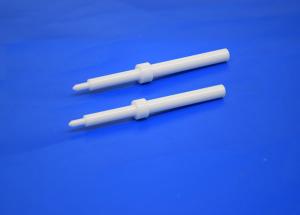

Detailed Images

High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts

Related Products

Packaging and Shipping

Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts

Company information

Who Are We?

Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

What Do We Do?

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

Our products with some certificates, such as , CE, TUV, etc..

Factory Show

High Hardness Polished Zirconia Ceramic Pin / Rod / Bar for Industrial Machine Parts

Production Process Show

One-stop production, from the raw material to final product.
